Jewell Model 802 Deep Water Submersible Tiltmeter Series

Updated:2026-01-24

Brand: Jewell
Model: Model 802
Description: The Model 802 DeepWater Series is the fully submersible cousin of our Model 801 Tuff Tilt Series. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 sta
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model 802 Deep Water Submersible Tiltmeter Series Description：

A802 Datasheet C802 Datasheet D802 Datasheet

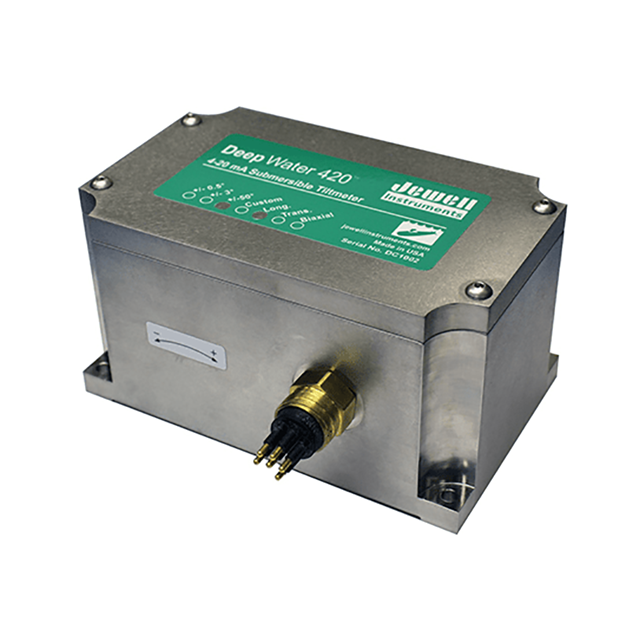

The Model 802 DeepWater Series is the fully submersible cousin of our Model 801 Tuff Tilt Series. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector. The pressure rating is 250 bars (2500 meters depth). Higher-pressure versions may be special ordered. Temperature rating is governed by the neoprene connector. Wider temperature range is available with other connector types. Units are available in a variety of configurations including single axis (uniaxial), or dual-axis (biaxial), analog, digital, or 4-20mA outputs.

Specifications

A802: ±5V

	High Gain	Standard	Wide Angle
Angular Range (°)	±0.5	±3.0	±50
Resolution (°)	<0.0001	0.0006	0.01
Repeatability (°)	<0.0002	0.001	0.02
Non-linearity (%)	1	<2	? span: 1 Full span: 2
Scale Factor (°/V)	0.1	0.6	10
Time Constant	1.75 sec (2-pole Butterworth low-pass filter)		0.15 sec
Kz Temperature Coefficient (°/C)	±0.0002
Ks Temperature Coefficient (%/°C)	<0.02
Output	±5VDC (single ended) ±10VDC (differential)
Channels	Tilt, Temperature
Output Impedance (Ω)	270
Temperature Output	0.1°C/mV typical (single ended; 0°C = 0mV)
Power	8-18 VDC @ 8mA, 250 mV ripple max, reverse polarity protected
Environmental	-4 to +60° C operation -30 to +100° C storage. IP68
Materials	316SS (6AL-4V Titanium also available)
Cable	6-conductors, two-types available: 1) Neoprene, 20 AWG, no shield 2) PVC jacketed, polypropylene-insulation, 24 AWG, shielded. Order cable separately.

C802: 4-20mA

	High Gain	Standard	Wide Angle
Angular Range (°)	±0.5	±3.0	±50
Resolution (°)	<0.0001	0.0006	0.01
Repeatability (°)	<0.0002	0.001	0.02
Non-linearity (%)	1	2	? span: 1 Full span: 2
Scale Factor (°/mA)	0.625	0.375	6.25
Time Constant	0.15 sec
Kz Temperature Coefficient (°/C)	±0.0002		±0.002
Ks Temperature Coefficient (%/°C)	<0.04		<0.1
Output	4-20mA Two-wire current loop (per axis)
Channels	Tilt, Temperature
Output Impedance (Ω)	270
Temperature Output	Temperature is measured with a 2500 Ohm thermistor, -50 to 150°C range
Power	(0.02 Ampere x R + 10 VDC) < Vs < 29 VDC
Environmental	-4 to +60°C operation -40 to +85°C storage IP68 Submersible to 200 meters (656.2 ft)
Materials	316SS (6AL-4V Titanium also available)
Cable	6-conductors, Neoprene, 20 AWG, no shield

D802: Digital

	High Gain	Standard	Wide Angle
Angular Range (°)	±0.5	±5.0	±50
Resolution (°)	<0.0001	0.002	0.02
Repeatability (°)	0.0003	0.002	0.02
Non-linearity (%)	0.1	0.1	0.1
Time Constant	0.15 sec
Kz Temperature Coefficient (°/C)	±0.001		±0.01
Baud Rate	9600 (default), 19200, 28800, 57600, 115200, 230400
Output	RS-232, RS-485
Output Format	NMEA XDR, Trimble TCM, Ashtec compatible, Simple (default: X, Y, Temp., S/N)
Channels	X-tilt, Y-tilt, Temperature
Power	7-25 VDC @ 27mA, 250 mV peak to peak ripple max, reverse polarity protected
Environmental	-4 to +60° C operation; -30 to +100° C storage. 3500 psi (~250 bars)
Materials	316SS
Cable	6-pin neoprene, wet-mateable
