Gentec-EO UP10K-2S-H5-L-D0 Thermal Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual BLU User's Manual INTEGRA User's Manual UP and XLP12 User's Manual

Gentec-EO UP10K-2S-H5-L-D0 Thermal detector for laser power measurement up to 2 W.

Versatile absorber suitable for most applications

Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.

Useful for measuring a wide range of lasers

Low risk of damaging the equipment

Allows fast rise time

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

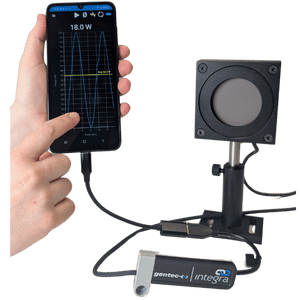

Android phone compatibility with optional INTEGRA output

The UP series is compatible with your Android device when you choose the INTEGRA (USB) output. You only need a USB-A to USB-C converter such as USBA-C and our free BLU mobile app available in the Google Play Store.

Most portable solution

No need to carry a laptop

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

NShorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Key Features

Low Power Thermopile

Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device

IR Filter (UPF10 Models)

Removes unwanted IR interference

High Performance

Fast rise time (1.1 sec)

High damage threshold (36 kW/cm2)

Compact Design

Only 13 mm thick (UP10P model)

Energy Mode

Measure single shot energy up to 3 J

Smart Interface

Containing all the calibration data

Specifications
