User's Manual

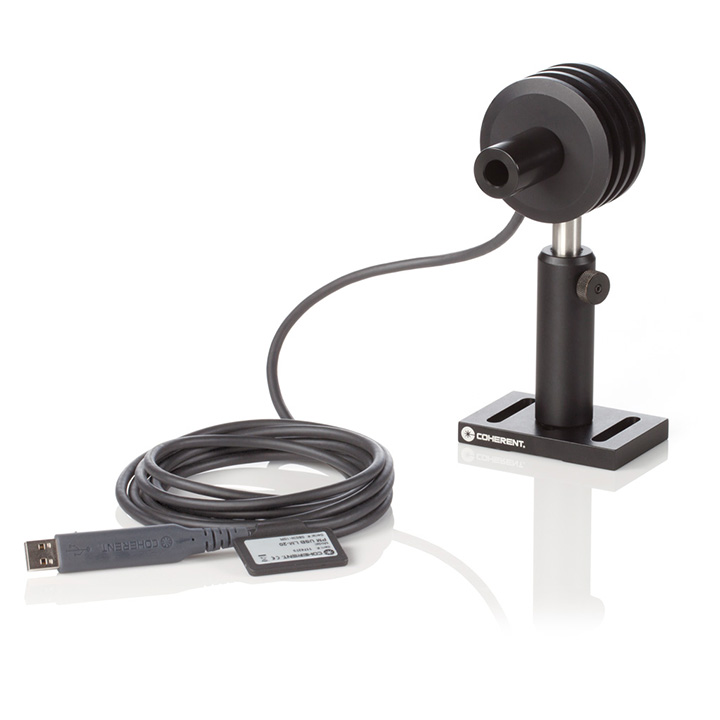

This PowerMax-USB PM3Q sensor is an amplified thermopile power sensor intended for measuring low power lasers down into the mW range. It includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.3 to 2.1 μm.
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098419) is available.
For a wider spectral range, the similar PowerMax-USB PM3 model (PN 1174263) does not include the quartz filter, enabling a spectral range of 0.19 to 11 μm.
Low power thermopile for measuring pulsed & CW lasers between 0.5 mW and 2W. Includes a quartz window to more effectively eliminate thermal background radiation. Direct USB interface.
Key Features:
500 μW to 2W range
10 mm diameter active area
0.3 to 2 μm spectral range
Quartz window
Convective air-cooled
Direct USB interface
ISO 17025 accredited
Specifications
