Datasheet User's Manual

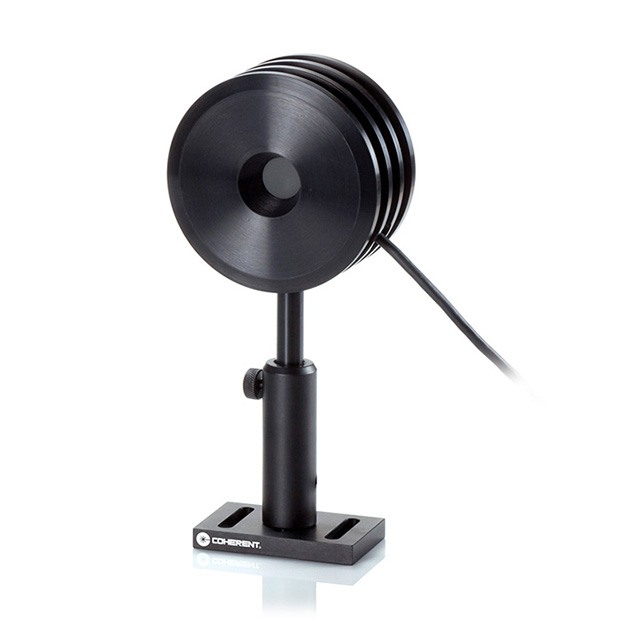

This PowerMax-RS PM30X sensor is a convectively cooled laser power sensor intended for measuring lasers up to 30W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098498) and USB direct (PN 1263294) models are available.
Convectively cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 10 mW and 30W. Direct RS232 interface.
Key Features:
10 mW to 30W range
UV coating
19 mm diameter active area
0.15 to 1 μm spectral range
Convective air-cooled
Direct RS232 interface
ISO 17025 accredited
Specifications
