Gentec-EO PH20-Ge-OD1-D0 Photodiode Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual PH and PE User's Manual

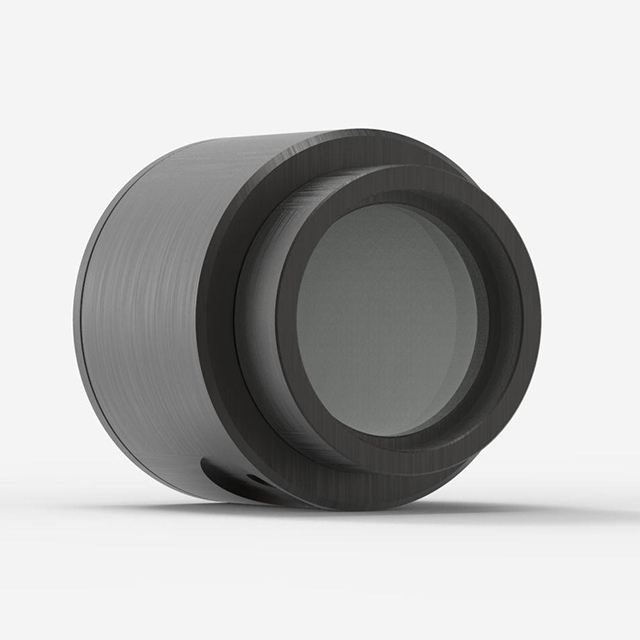

Gentec-EO PH20-Ge-OD1-D0 Photodiode detector for laser power measurement up to 300 mW.

Measure in the NIR range with a germanium absorber

Photodiode-based detector for very low power measurement that offers a fast response for the NIR wavelengths (800-1650 nm).

Wide dynamic range

Very low noise

Fast response

Not sensitive to visible light

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Key Features

Large apertures

10 mm ? for the silicon sensors

3 versions

Silicon 350 - 1080 nm, up to 750 mW

Silicon-UV 210 - 1080 nm, up to 38 mW

Germanium 800 - 1650 nm, up to 500 mW

Choice of attenuators

Models with attenuators include a calibration both with and without the removable filter

High accuracy

The new PH100-SI-HA presents the lowest calibration uncertainty to date.

Precise calibration

Wavelength selection in 1 nm steps

Smart interface

Containing all the calibration data

Specifications
