2752x2192 pixel resolution with a 4.4μm pixel pitch
Adjustable Gain levels and programmable electronic shutter
BeamGage Standard or Professional software included

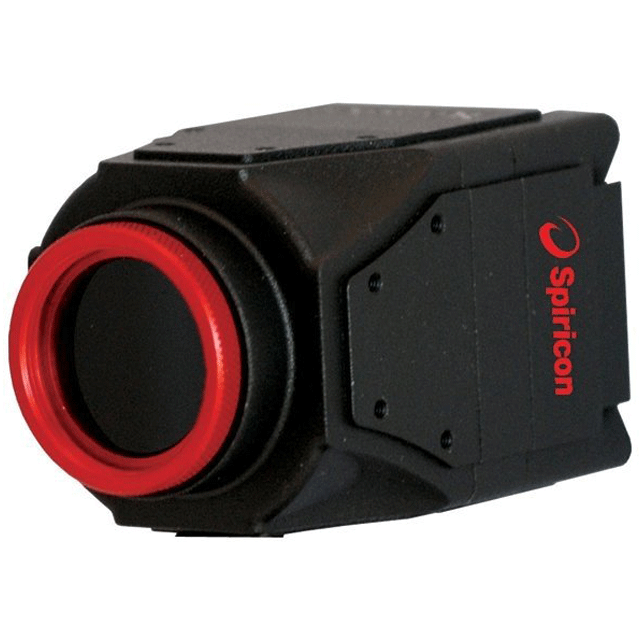

USB 3.0 Large Format Silicon CCD High Resolution Camera with BeamGage
| Wavelengths | 190-1100nm |
| Beam Sizes | 46μm - 9.9mm |
| Interface | USB 3.0 |
| Sensor Type | Silicon CCD |
| Compatible Light Sources | CW, Pulsed |
| Active Area | 12.5mm x 10.0mm |
| Elements | 2752 x 2192 |
| Effective Pixel Pitch | 4.54μm |
| Dynamic Range | 54 dB |
| Frame Rate at Full Resolution | 27 fps |
| Compliance | CE, UKCA, China RoHS |

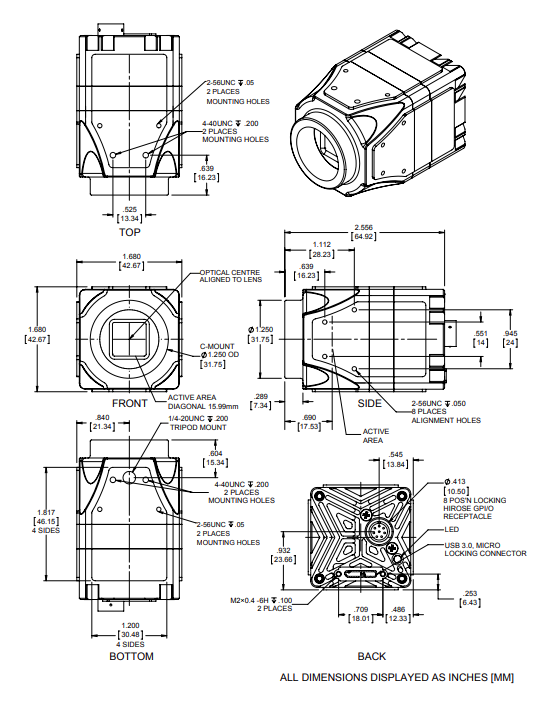

What is the distance from the front of the camera to the sensor?This C-mount Standard camera has a sensor depth from the front of the camera to the sensor of 17.5mm.
What is the saturation level of the LT665 camera?The saturation intensity for the LT665 is 1.3μW/cm2

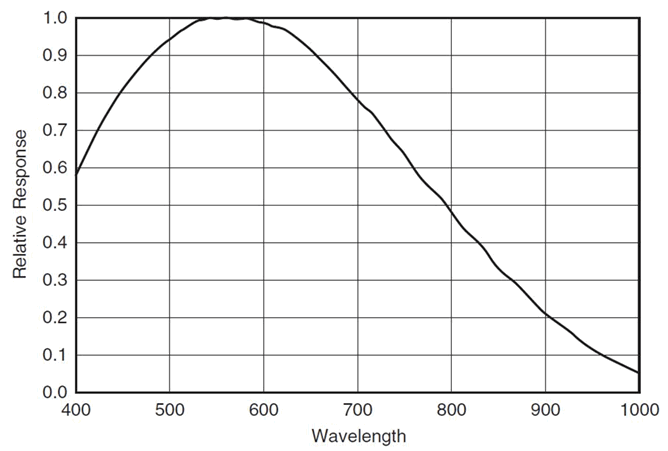

At what wavelengths is the LT665 most responsive?
What is the framerate of the LT665?27 Frames/second
What beam sizes can I measure with the LT665?46μm - 9.9mm
