IS1.5-IRG-FPD-800 7Z02493 Photodetector

Updated:2025-03-13

Brand：Ophir
Model：IS1.5-IRG-FPD-800
Description: The IS1.5-IRG-FPD-800 provides multiple measurement capabilities in a single integrating sphere device: a) a precision photodiode for calibrated average power measurement, b) a fast photodiode for pul
Data download

Feedback
WeChat

QQ

Online Service

Product Details

IS1.5-IRG-FPD-800 7Z02493 Photodetector Description：

The IS1.5-IRG-FPD-800 provides multiple measurement capabilities in a single integrating sphere device: a) a precision photodiode for calibrated average power measurement, b) a fast photodiode for pulse shape characterization on an oscilloscope and a built in SMA fiber adapter, and c) an SMA fiber optic adapter for easy connection to a spectrometer. The IS1.5-IRG-FPD-800 has a small internal diameter of 1.5 inch (38mm), to minimize the pulse stretching effect inherent to integrating spheres, giving it a time constant of 0.7ns. Together with its fast InGaAs photodiode, the IS1.5-IRG-FPD-800 provides a pulse rise time of 0.8ns and a fall time of 5ns.

IS1.5-IRG-FPD-800 7Z02493 Photodetector Drawing：

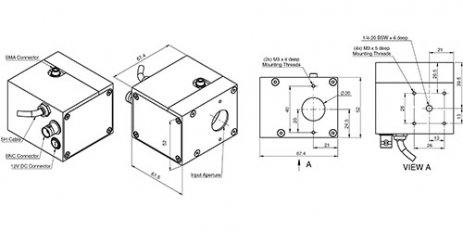

IS1.5-IRG-FPD-800 Drawing

IS1.5-IRG-FPD-800 7Z02493 Photodetector Specifications：

Detector Type	InGaAs & Fast InGaAs
Spectral Range	940-1640nm
Power Range	600nW-3W
Input Port Aperture	?20mm
Maximum Beam Divergence	±50 deg
Fiber Optic Port	SMA connector, maximum NA 0.44
Dimensions	67 L x 52 W x 61 D (mm)
Detector 1	InGaAs photodiode, calibrated power measurement
Spectral Range (det. 1)	940–1640nm
Power Range (det. 1)	600nW–3W
Output (det. 1)	Smart Head, D15
Detector 2	Fast InGaAs photodiode, temporal pulse shape detection
Spectral Range (det. 2)	940–1640nm
Rise Time (det. 2)	0.8 nsec
Fall Time (det. 2)	5 nsec
Typical CW Responsivity @ 1100-1500nm	0.14 typ. mA/W
Noise Current	15.5 typ. fA/√Hz
Output (det. 2)	Analog current
