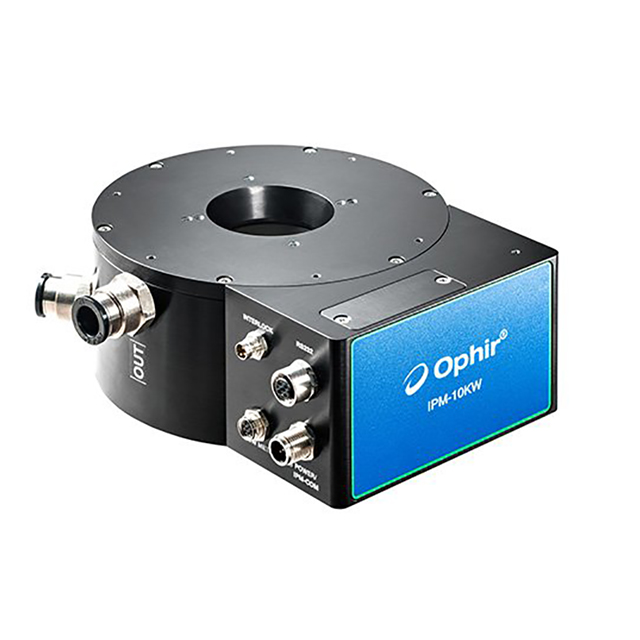

The IPM-10KW industrial sensor measures up to 11kW at Wavelengths 0.9-1.1 μm, 10.6μm. Heavy duty design with industrial interface and connectors. Has an Interlock to protect from overpower or cooling water failure. With Real time visibility, traceability, and logging for predictive maintenance. It has lSO17025 NIST & PTB traceable calibration.
The IPM-10KW has heavy duty connectors and an interlock output. For more protection, the user can order the IPM-Shutter10 which provides an automated shutter with a field replaceable anti-reflective coated window. Integration into modern automation systems is available with the IPM-COM communication module (EtherNet/IP and Profinet).
IPM-10KW Drawing
| Absorber Type | Beam deflector + broadband absorber |
| Aperture | ?45mm |
| Spectral Range | 0.9-1.1μm, 10.6μm |
| Power Range | 100W-11,000W |
| Energy Range | 60J-10kJ |
| Backscattered Power | ~3.5% without IPM-Shutter10, ~1% with IPM-Shutter10 |
| Dimensions | ?179 W x 70 D (mm) |
| Max Pulse Energy | 10kJ |
| Max Average Power Density | 10kW/cm2 |
| Response Time | 2.7 s |
| Max Energy Density (for <100ns) | 30J/cm2 |
| Max Energy Density (for 2ms) | 1350J/cm2 |
| Max Average Power | 11kW |
| BeamTrack Functions | N.A. |
