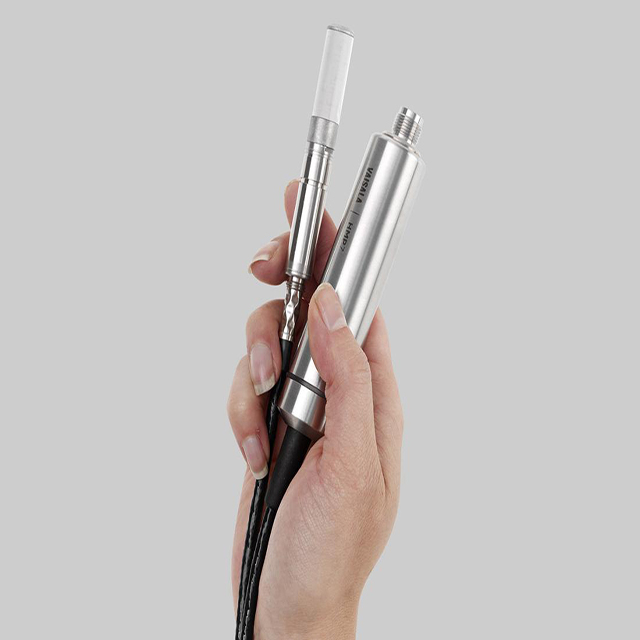

The intelligent temperature and humidity probe HMP7 is designed for applications with consistently high humidity or rapid humidity changes, such as drying and test chambers, combustion air, other humidifiers, and meteorological measurements, where measurement performance and chemical tolerance are critical. The HMP7 is part of the Indigo product range and is compatible with the Indigo500, Indigo200 series of mainframe devices and the free Insight PC software.

• ? Relative humidity (RH) accuracy up to 0.8 %RH, temperature accuracy up to 0.1 °C (0.18 °F)
• ? Temperature measuring range -70... +180 °C (-94... + 356 ° F)
• ? Water gas seal and pressure seal structure
• ? Probe and sensor heating functions minimize condensation on the probe
• ? Sensor clearance provides first class chemical tolerance
• ? Plug and play, compatible with Indigo? series of transmitters
• ? Support for Modbus RTU communication protocol based on RS-485

• ? Traceable calibration certificate: 6 points for humidity, 1 point for temperature

Main Advantages:

Proven Vaisala HUMICAP performance

Vaisala has thin-film capacitive humidity measurement technology, which is widely accepted and commonly used in the field of humidity measurement, and is also widely followed in the field of humidity measurement standards.

There is no condensation under severe humidity conditions

The probe heating function increases the temperature of the entire probe. When the probe temperature is higher than the dew point temperature, condensation on the probe can be avoided.

Flexible connection

The probe is plug and play compatible with the Vaisala Indigo host device and can be used as a standalone digital Modbus RTU transmitter or connected to the Vaisala Insight? PC software.
