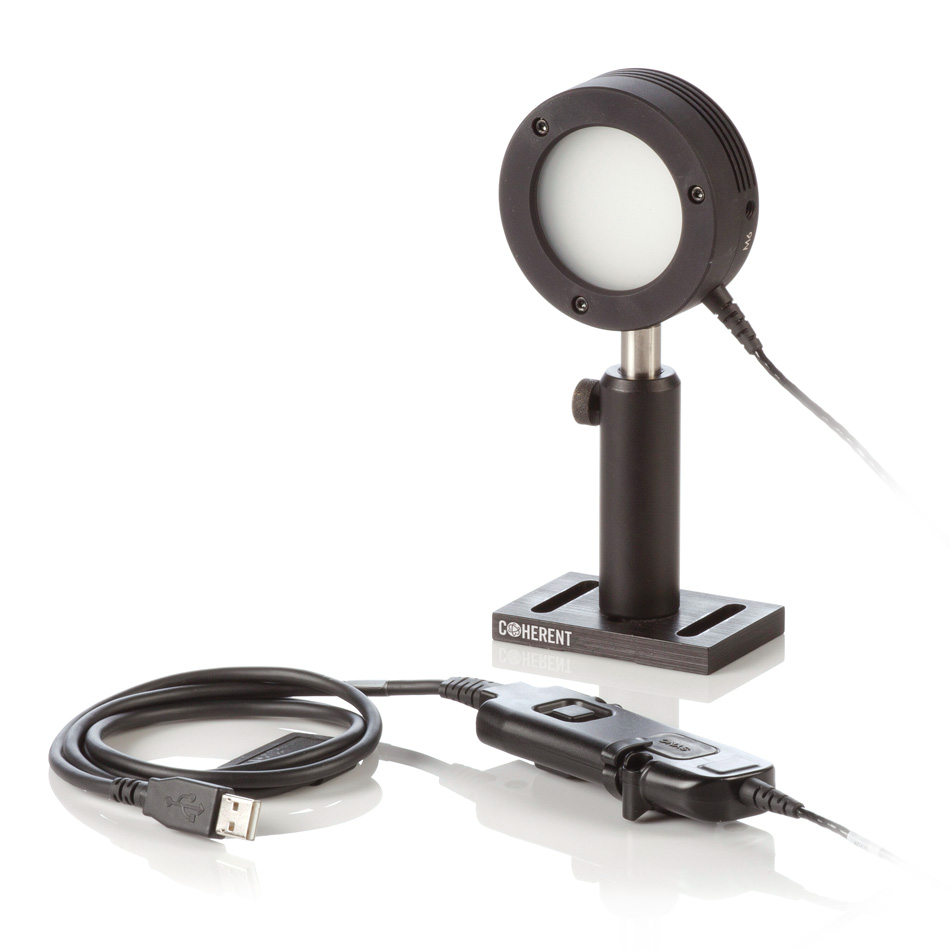

Coherent EnergyMax-USB J-50MB-YAG Energy Sensor Description：

Datasheet User's Manual

The J-50MB-YAG energy sensor is specifically design for high energy and high peak power lasers operating at relatively low repetition rates, such as those based upon Nd:YAG, Ruby, Ho:YAG, and Erbium. The J-50MB-YAG can be used with beams up to 35mm in diameter and can work at 1064 nm, 532 nm, 355 nm, and 266 nm without the need to change diffusers or self-calibrate the sensor.

The EnergyMax-USB J-50MB-YAG energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110744) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 2.4 mJ - 3J at up to 50 pps. Direct USB interface.

Key Features:

266 nm to 2.1 μm spectral range

50 mm diameter active area

2.4 mJ - 3J energy range

50 pps repetition rate operation

ISO 17025 accredited

Direct USB interface

Specifications
