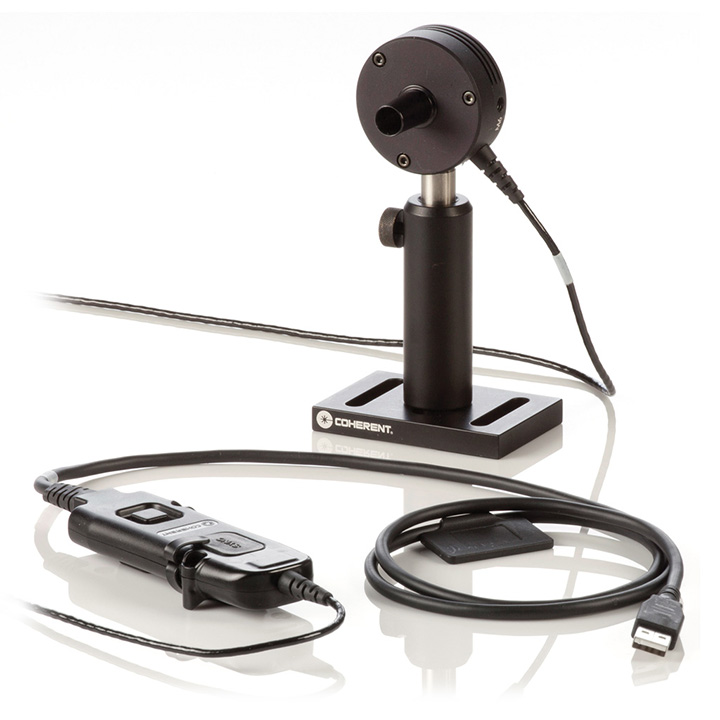

The EnergyMax-RS J-10Si-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1150146) is available.
Semiconductor energy sensor with silicon detector and diffuser for measuring laser pulses from 750 pJ to 775 nJ at up to 10000 pps. Direct RS232 interface
Key Features:
325 to 900 nm spectral range
10 mm diameter active area
750 pJ to 775 nJ energy range
10000 pps repetition rate operation
Direct RS232 interface
ISO 17025 accredited
